MX300-XFEL

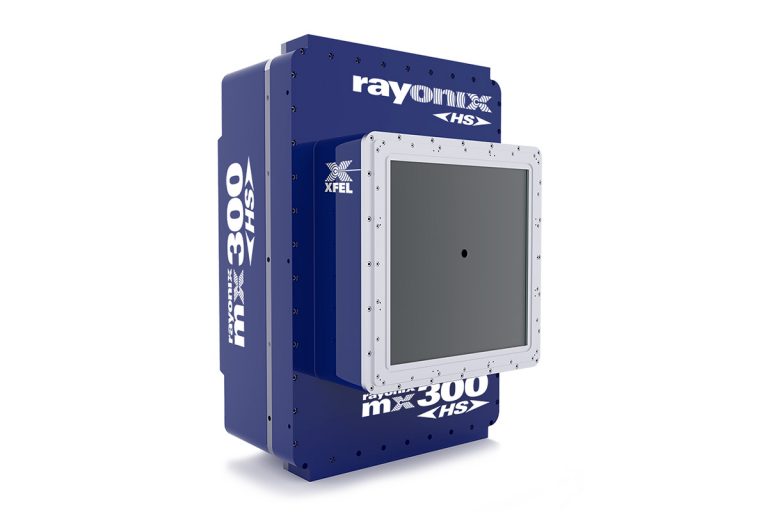

A very large area, high speed X-ray detector with a central 5mm wide tunnel through the imaging area, exiting in the back of the detector. This tunnel enables beam diagnostics or further experiments behind the detector. With a 300 x 300mm² square active area, this detector consists of 16 frame-transfer CCD modules, tiled without gaps in the imaging area. Full resolution is 7680 x 7680 pixels

Category: .
Description
This 300mmx300mm square X-ray area detector with beam tunnel has several specialized modes. Besides the standard mode described in the specs and parameter sections, Turbo, Low-Noise and High Dynamic Range (HDR) modes are also user controlled.
Technical Specifications
Type

16 FT-CCDs bonded to fiber-optic tapers

Sensor

Proprietary Rayonix
frame-transfer CCD

Active Imaging Surface

300 x 300mm²
90,000mm²

Dark Current

0.003e⁻/pixel/second, or
0.0004 photons/pixel/second (12keV)

Dead Time Between Images

1 millisecond

DQE

0.8 for 12 keV X-rays

Fiber-optic Taper Demagnification Ratio

2.6:1

Full Well Capacity

400ke⁻/pixel
(at standard binning, 2 x 2)

Phosphor

Standard 40μm thick, custom options available

PSF (FWHM) Depends on Phosphor Option Chosen

100μm with standard phosphor, 65μm with 25μm phosphor

Readout Electronics (# of Channels)

256 channels

Readout Noise

High Speed Mode: 8e⁻/pixel
Low Noise Mode: 4.5e⁻/pixel

Sensitivity (Gain)

9e⁻/12keV photon

Sensor Operating Temperature

-80°C

Cooling

Closed-cycle refrigeration

User-Configurable Imaging Parameters-MX300-XFEL
1 X 1
Readout Speed

Pixel Size

Frame Size

2.5 frames/second

39μm

7680 x 7680 pixels

2 X 2
Readout Speed

Pixel Size

Frame Size

 10 frames/second

78μm

3840 x 3840 pixels

3 X 3
Readout Speed

Pixel Size

Frame Size

20 frames/second

117μm

2560 x 2560 pixels

4 X 4
Readout Speed

Pixel Size

Frame Size

 33 frames/second

156μm

1920 x 1920 pixels

5 X 5
Readout Speed

Pixel Size

Frame Size

 47 frames/second

195μm

1536 x 1536 pixels

6 X 6
Readout Speed

Pixel Size

Frame Size

 62 frames/second

234μm

1280 x 1280 pixels

8 X 8
Readout Speed

Pixel Size

Frame Size

 92 frames/second

312μm

960 x 960 pixels

10 X 10
Readout Speed

Pixel Size

Frame Size

 123 frames/second

390μm

768 x 768 pixels

Physical Dimensions MX300-XFEL
Detector Head
Height x Width x Depth

Approximate Weight

77cm x 49cm x 48cm

190kg

Electronics / Cooling Assembly
Height x Width x Depth

Approximate Weight

132cm x 64cm x 64cm (x2)
  97cm x 64cm x 64cm
215kg (x3)
