MX340-HS


A very large area, high speed detector for the most demanding X-ray science applications. Consists of a 4 x 4 tiled array of frame-transfer CCD modules, with 340 x 340mm² square active area, tiled without gaps in the imaging area. Full resolution is 7680 x 7680 pixels.

Category: .
Description
This 340mmx340mm square X-ray area detector has several specialized modes. Besides the standard mode described in the specs and parameter sections, Turbo, Low-Noise and High Dynamic Range (HDR) modes are also user controlled.
Technical Specifications
Type

16 FT-CCDs bonded to fiber-optic tapers
Sensor

Proprietary Rayonix
frame-transfer CCD
Active Imaging Surface

115,600mm²
Dark Current

0.003e⁻/pixel/second, or
0.0004 photons/pixel/second (12keV)
Dead Time Between Images

1 millisecond
DQE

0.8 for 12keV X-rays
Fiber-optic Taper Demagnification Ratio

2.92:1
Full Well Capacity

360ke⁻/pixel
(at standard binning, 2 x 2)
Phosphor

Standard 40μm thick, custom options available
PSF (FWHM) Depends on Phosphor Option Chosen

100μm with standard phosphor, 65μm with 25μm phosphor
Readout Electronics (# of Channels)

256 channels
Readout Noise

High Speed Mode: 8e⁻/pixel
Low Noise Mode: 4e⁻/pixel
Sensitivity (Gain)

7e⁻/12keV photon
Sensor Operating Temperature

-80°C
Cooling

Closed-cycle refrigeration
User-Configurable Imaging Parameters MX340HS
1 X 1
Readout Speed

Pixel Size

Frame Size

 2.5 frames/second

44μm

7680 x 7680 pixels
2 X 2
Readout Speed

Pixel Size

Frame Size
 10 frames/second

89μm

3840 x 3840 pixels
3 X 3
Readout Speed

Pixel Size

Frame Size

 20 frames/second

133μm

2560 x 2560 pixels
4 X 4
Readout Speed

Pixel Size

Frame Size

  33 frames/second

177μm

1920 x 1920 pixels
5 X 5
Readout Speed

Pixel Size

Frame Size

  47 frames/second

221μm

1536 x 1536 pixels
6 X 6
Readout Speed

Pixel Size

Frame Size

  62 frames/second

266μm

1280 x 1280 pixels
8 X 8
Readout Speed

Pixel Size

Frame Size

  92 frames/second

354μm

960 x 960 pixels
10 X 10
Readout Speed

Pixel Size

Frame Size

  123 frames/second

440μm

768 x 768 pixels
Physical Dimensions
Detector Head
Height x Width x Depth Approximate Weight 77cm x 49cm x 48cm 210kg

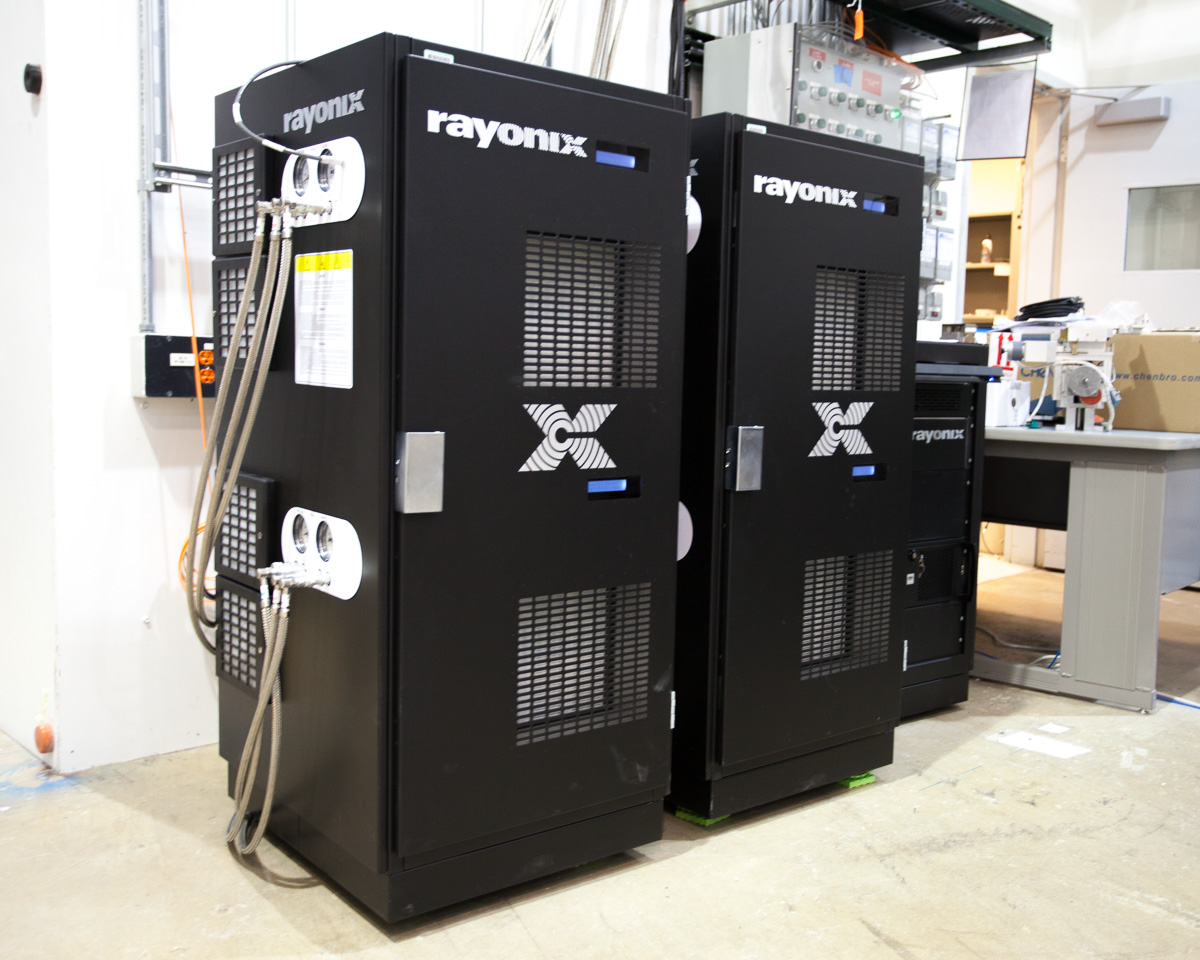

Electronics / Cooling Assembly
Height x Width x Depth Approximate Weight
132cm x 64cm x 64cm (x2)
  97cm x 64cm x 64cm
215kg (x3)
